Product Battery CGS Series

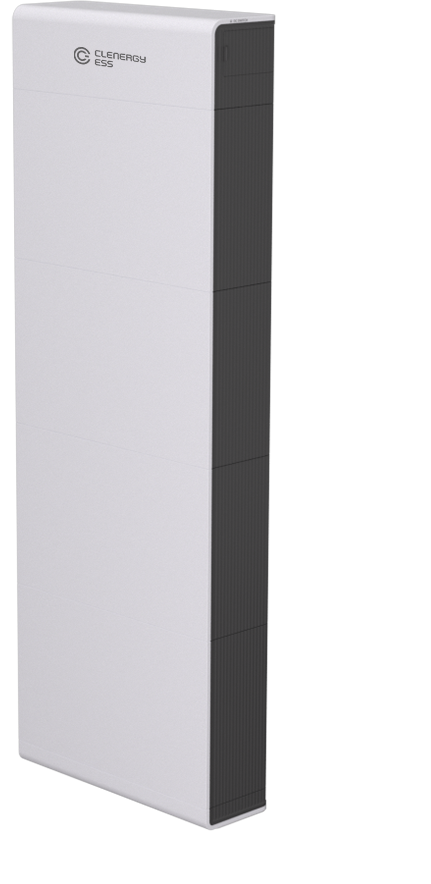

CGS Series

A low-voltage battery system

Ultra Safe

The CGS Series features a reliable LFP battery cell, a built-in fire protection module, and a multi-layer protection design with an intelligent BMS.

Flexible and Reliability

Offering a wide capacity range with support for up to 4 units in parallel and features IP66 protection for both outdoor and indoor installation.

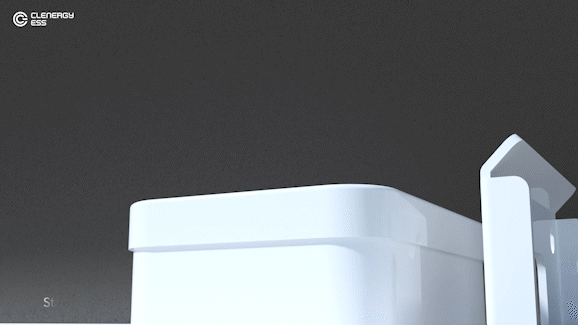

Easy Installation

Plug & Play

Featuring a modular, lightweight, and compact design, with stacked installation and a Plug & Play connection.

Intelligent O&M

Supporting remote upgrades via a hybrid inverter and features battery modules with auto-addressing.

Clenergise Cloud

Our dedicated Clenergise Cloud platform streamlines system commissioning with quick setup, real-time monitoring, and intuitive control — all at your fingertips. Installers can fine-tune AC output to meet local regulations, while homeowner can enjoy full control over energy usage, choosing when to self-consume, export to the grid, or charge the battery.

View More

Parameter

Model - CGS E5.1L

Basic Parameters

Qty. of Battery Module
1
Battery Type
LFP
Rated Energy
5.12kWh
Rated Voltage
51.2V
Voltage Range
44.8-57.6V
Max.Charge / Discharge Current
50A

General Info

IP Rating
IP66
Communication
CAN /RS485
Weight
60kg
Dimension (H*W*D) mm
600*600*200
Certification
EN61000,IEC60730,IEC62619,IEC62040, UN38.3

Model - CGS E10.2L

Basic Parameters

Battery Type
LFP
Qty. of Battery Module
2
Rated Energy
10.24kWh
Rated Voltage
51.2V
Voltage Range
44.8-57.6V
Max.Charge / Discharge Current
100A

General Info

IP Rating
IP66
Communication
CAN /RS485
Weight
110kg
Dimension (H*W*D) mm
970*600*200
Certification
EN61000,IEC60730,IEC62619,IEC62040, UN38.3

Model - CGS E15.3L

Basic Parameters

Battery Type
LFP
Qty. of Battery Module
3
Rated Energy
15.36kWh
Rated Voltage
51.2V
Voltage Range
44.8-57.6V
Max.Charge / Discharge Current
100A

General Info

IP Rating
IP66
Communication
CAN /RS485
Weight
160kg
Dimension (H*W*D) mm
1340*600*200
Certification
EN61000,IEC60730,IEC62619,IEC62040, UN38.3

Model - CGS E20.4L

Basic Parameters

Battery Type
LFP
Qty. of Battery Module
4
Rated Energy
20.48kWh
Rated Voltage
51.2V
Voltage Range
44.8-57.6V
Max.Charge / Discharge Current
100A

General Info

IP Rating
IP66
Communication
CAN /RS485
Weight
210kg
Dimension (H*W*D) mm
1710*600*200
Certification
EN61000,IEC60730,IEC62619,IEC62040, UN38.3
